TPM-236173/248185 Five-piece Combination Seal 60*44/63*47 Italian TECNOTEX
| Place of Origin | CHINA/ LTALIAN |
|---|---|
| 브랜드 이름 | DZK |
| 인증 | ROHS |
| Model Number | TPM-236173/248185 |
| Minimum Order Quantity | 100PCS |
| 가격 | negotiate |
| Packaging Details | 100pcs/bag |
| Delivery Time | 7-10 days |
| Payment Terms | ,L/C,T/T |
| Supply Ability | 1000000PCS/MONTH |
무료 샘플과 쿠폰을 받으려면 연락하세요.
왓츠앱:0086 18588475571
웨이 채팅: 0086 18588475571
스카이프: sales10@aixton.com
걱정이 있으시면 24시간 온라인 서비스를 제공합니다.
x제품 상세 정보
| Product Name | TPM Five-component Seal | Function | seal |
|---|---|---|---|
| Pressure Resistant | 40MPa | Material | NBR+PU |
| Speed | 0.5m/s | Temperature | -30℃~+110℃ |
| Medium | General-purpose Petroleum-based Hydraulic Fluid | Product Overview | KDAS Combination Seals Are Often Used As Sealing Elements In Hydraulic Cylinders And Pistons That Undergo Repeated Motion. |
| 강조하다 | TECNOTEX combination seal set |
||
필요한 제품을 선택하고 게시판에서 당사와 소통 할 수 있습니다.
| 236173 60*44*18.4*31.1 | |
|---|---|
| 236173/1 60*44*19.4*32.1 | |
| 248189 63*47*18.1*31.1 | |
| 248185/1 63*47*19.4*32.1 |
제품 설명
Product Overview
The TPM-236173/248185 five-piece combination seal is a high-performance sealing solution designed for a wide range of industrial applications. Engineered with precision and durability in mind, this seal set offers reliable performance even in the most challenging operating conditions.
Component Breakdown

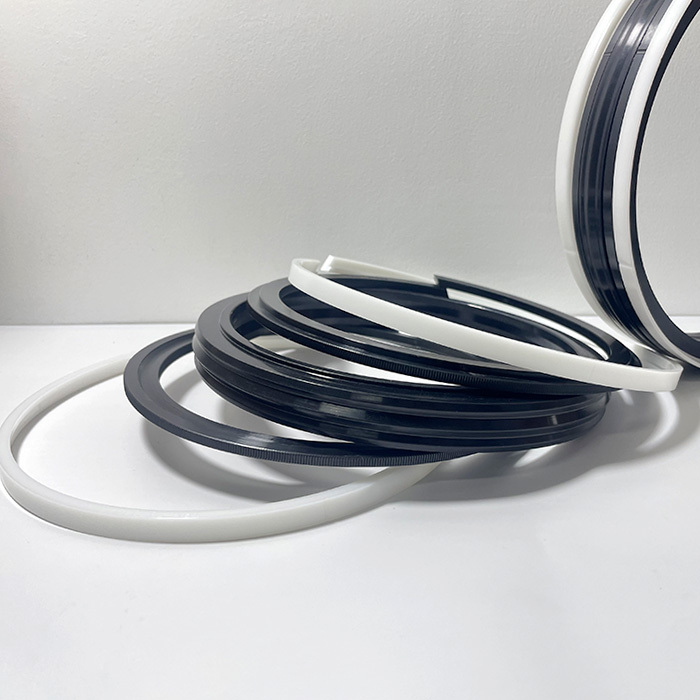

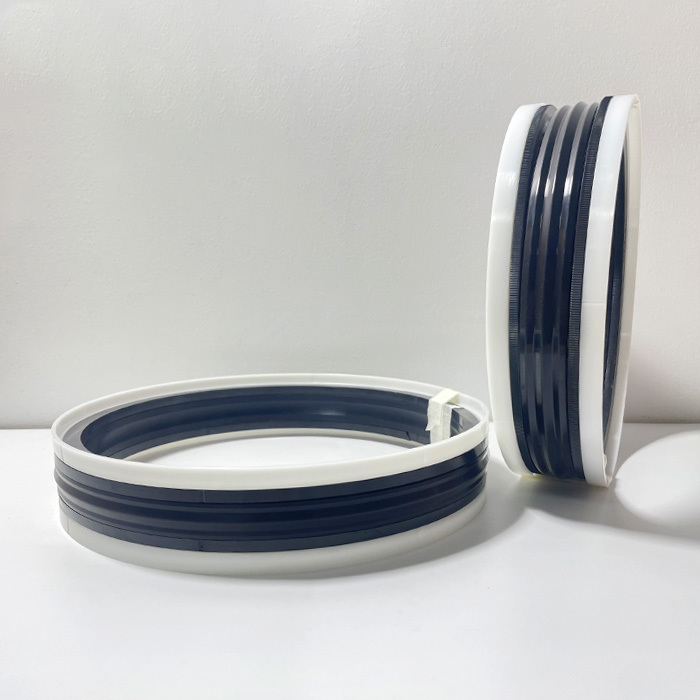

TPM consists of five parts: the central part is nitrile rubber, two polyester support rings, and two polyoxymethylene guide rings. This unique combination generates very low friction under high-pressure working conditions. It is easy to install, highly wear-resistant, highly resistant to extrusion, and has minimal deformation.
Key Features
- Multi-Component Design: Comprising five carefully crafted components, this seal set provides comprehensive sealing capabilities. The combination of materials and design ensures effective sealing against various fluids and gases.
- High Pressure Resistance: Built to withstand high pressures, the TPM can handle demanding applications where pressure integrity is crucial.
- Wide Temperature Range: Operates efficiently across a broad temperature spectrum, making it suitable for both cold and hot environments.
- Excellent Chemical Resistance: Resistant to a variety of chemicals, this seal set is ideal for applications involving exposure to different substances.
- Long Service Life: Engineered for durability, it offers extended service life, reducing the need for frequent replacements and minimizing maintenance costs.
Applications
- Hydraulic Systems: Ideal for use in hydraulic cylinders, pumps, and valves, ensuring leak-free operation and optimal performance.
- Pneumatic Applications: Suitable for pneumatic systems where reliable sealing is required to maintain pressure and prevent air leakage.
- Industrial Machinery: Used in various industrial machinery, such as compressors, mixers, and conveyors, to enhance equipment reliability and efficiency.
- Automotive Industry: Applied in automotive applications, including engines, transmissions, and braking systems, for improved sealing performance.
Installation and Maintenance
Installation of the TPM-236173/248185 five-piece combination seal is straightforward, but it is recommended to follow the provided installation guidelines for optimal results. Regular inspection and maintenance can help ensure the seal continues to perform at its best.
Why Choose Our Seal?
Our TPM-236173/248185 combination seal is manufactured to the highest standards, using top-quality materials and advanced production techniques. We are committed to providing our customers with reliable, high-performance sealing solutions that meet their specific needs. With our seal, you can expect enhanced equipment performance, reduced downtime, and cost savings in the long run.
