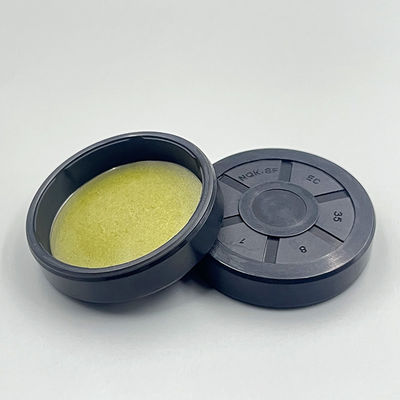

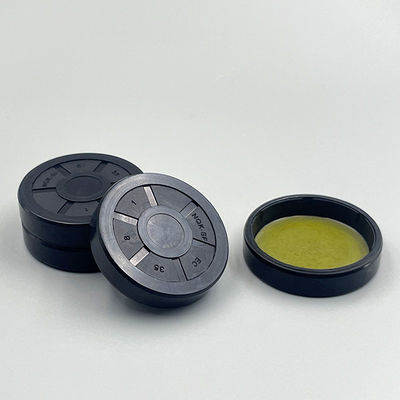

EC Series End Cover Oil Seal Hydraulic Cylinder Seals NBR Rubber KSK Oil Seal End Cover
| 원래 장소 | 중국 |
|---|---|
| 브랜드 이름 | DZK |
| 인증 | ROHS |
| 모델 번호 | EC 시리즈 엔드 커버 오일 씰 |
| 최소 주문 수량 | 100pcs |
| 가격 | negotiate |
| 포장 세부 사항 | 100pcs/bag |
| 배달 시간 | 7-10 일 |
| 지불 조건 | l/c, t/t |
| 공급 능력 | 10000000pcs/월 |
무료 샘플과 쿠폰을 받으려면 연락하세요.
왓츠앱:0086 18588475571
웨이 채팅: 0086 18588475571
스카이프: sales10@aixton.com
걱정이 있으시면 24시간 온라인 서비스를 제공합니다.
x제품 상세 정보
| 제품 이름 | EC/VK 커버 씰 | 제품 자료 | NBR |
|---|---|---|---|
| 제품 색상 | 검은색 | 작동 매체 | 미네랄 오일, 합성 오일 등 |
| 작동 온도 | +100' Ｃ에 대한 -40' Ｃ | 재료 특성 | 오일 방지 ant 방수 |
| 제품 사용 | 먼지 및 오염 물질이 움직이는 부품에 들어가는 것을 방지하기 위해 기어 박스 및 감속기 하우징에 주로 사용됩니다. | 제품 사양 | 사양이 완료되고 사용자 정의가 지원됩니다. |
제품 설명
EC series end cover seals | Reliable shaft protection for rotating equipment
Built-in metal frame design • Extended service life • Simplified maintenance
Product Overview
The EC Series End Cover Oil Seal is a precision-engineered sealing solution designed to protect bearings and internal components from contaminant ingress and lubricant leakage in rotary equipment. Featuring an advanced double-lip design with integrated dust exclusion and primary sealing functions, it ensures reliable performance in industrial machinery, automotive systems, and heavy-duty applications.
Key Features & Benefits
- Dual-lip protection: The primary lip maintains lubrication; the secondary lip expels dust, dirt, and moisture.
- Premium raw materials: Made from NBR material, it is oil-resistant, waterproof, and dustproof.
- Easy installation: Designed with a precision-machined thick metal skeleton for quick and safe assembly.
- Temperature resistance: Performs stably within a range of -40°C to +100°C.
- Cost-effective: Reduces downtime and maintenance costs by extending component lifespan.
Technical Specifications
| Parameter | Standard Range |
|---|---|
| Shaft Diameter | 24mm-215mm |
| Temperature | -40°C to +100°C |
| Materials | NBR (Standard) |
| working medium | mineral oil, synthetic oil, etc. |
| characteristics | oil-resistant and waterproof |
Applications
- Industrial Gearboxes: Prevents lubricant leakage and contaminant entry.
- Automotive Transmissions: Ensures long-term sealing reliability.
- Electric Motors: Protects bearings from dust and moisture.
- Agricultural Machinery: Resists abrasive environments and harsh weather.
- Pumps & Compressors: Maintains sealing under variable pressure conditions.
Why Choose EC Series Seals?
-
Optimized lip geometry:
◦ Computer simulation design ensures low friction and minimal heat generation.
◦ The main lip, spring-loaded, maintains consistent sealing force.
-
Durable construction:
◦ Equipped with reinforced metal skeleton.
◦ Precisely molded elastomer with excellent wear resistance.
