COP/APA Fluorine Rubber Double-acting Cylinder Piston Seal Special O-ring
| 원래 장소 | 치안 |
|---|---|
| 브랜드 이름 | DZK |
| 인증 | ROHS |
| 모델 번호 | 아파 |
| 최소 주문 수량 | 100pcs |
| 가격 | negotiate |
| 포장 세부 사항 | 100pcs/bag |
| 배달 시간 | 7-10 일 |
| 지불 조건 | l/c, t/t |
| 공급 능력 | 10000000pcs/월 |
무료 샘플과 쿠폰을 받으려면 연락하세요.
왓츠앱:0086 18588475571
웨이 채팅: 0086 18588475571
스카이프: sales10@aixton.com
걱정이 있으시면 24시간 온라인 서비스를 제공합니다.
x제품 상세 정보
| 제품 이름 | 경찰/APA | 재료 | FKM (플루오로엘라스토머) |
|---|---|---|---|
| 압력 등급 | 0-1.5 Mpa | 온도 범위 | +200' Ｃ에 대한 -20' Ｃ |
| 색상 | 브라운(표준) | 작동 매체 | 광유, 합성유, 물 |
| 재료 특성 | 내유성, 내마모성 및 노화 방지 | 구조 | 양면 그루브, 복동식 |
제품 설명
COP/APA Fluorine Rubber Double-acting Cylinder Piston Seal | High-Performance FKM O-Ring for Extreme Conditions
Product Overview
The COP/APA Fluorine Rubber Double-acting Cylinder Piston Seal is a premium sealing solution engineered for the most demanding industrial applications. Manufactured from high-grade Fluoroelastomer (FKM), this specialized O-ring delivers exceptional performance in extreme temperatures, aggressive chemicals, and high-pressure environments, ensuring reliable sealing in both stroke directions of double-acting cylinders.
Key Features & Benefits
1.Material Performance: Strong material properties, with excellent resistance to high and low temperatures (-20°C to 200°C), strong acids, strong alkalis, and various oils, as well as outstanding chemical stability, making it less prone to swelling and cracking.
2. Good Sealing Effect: Well-suited for the reciprocating motion of double-acting cylinders, it conforms closely to the sealing surface, minimizes leakage under high pressure, has low compression deformation, and ensures long-term reliable sealing.
3. Outstanding Durability: High wear resistance and tear resistance, with good ozone aging resistance. Its lifespan is 3-5 times that of ordinary rubber rings, reducing replacement frequency.
4. High Adaptability and Cost-Effectiveness: Precisely matches the operating conditions of APA double-acting cylinders, reduces equipment maintenance costs, and can be used in multiple high-end scenarios such as chemical industry, machine tools, and automobiles.
Technical Specifications
| Parameter | Standard Specification |
|---|---|
| Material | FKM (Fluoroelastomer) |
| Temperature Range | -20°C to +200°C |
| Pressure Rating | 0-1.5 MPa |
| Color | Brown (Standard) |
Applications
-
Hydraulic Systems - High-pressure cylinders in manufacturing equipment
-
Chemical Processing - Pumps and valves handling corrosive media
-
Automotive Industry - Engine and transmission systems
-
Oil & Gas Equipment - Drilling and refining machinery
-
Aerospace Applications - High-temperature hydraulic systems
Material Advantages of FKM
Superior Chemical Resistance
-
Excellent resistance to oils, fuels, aromatics, and most chemicals
-
Minimal swelling in hydrocarbon-based fluids
-
Maintains performance in aggressive industrial environments
Thermal Stability
-
Continuous operation at elevated temperatures
-
Rapid thermal cycling capability
-
Retains elasticity across full temperature range
Mechanical Properties
-
Excellent compression set resistance
-
Good tensile and tear strength
-
Low gas permeability

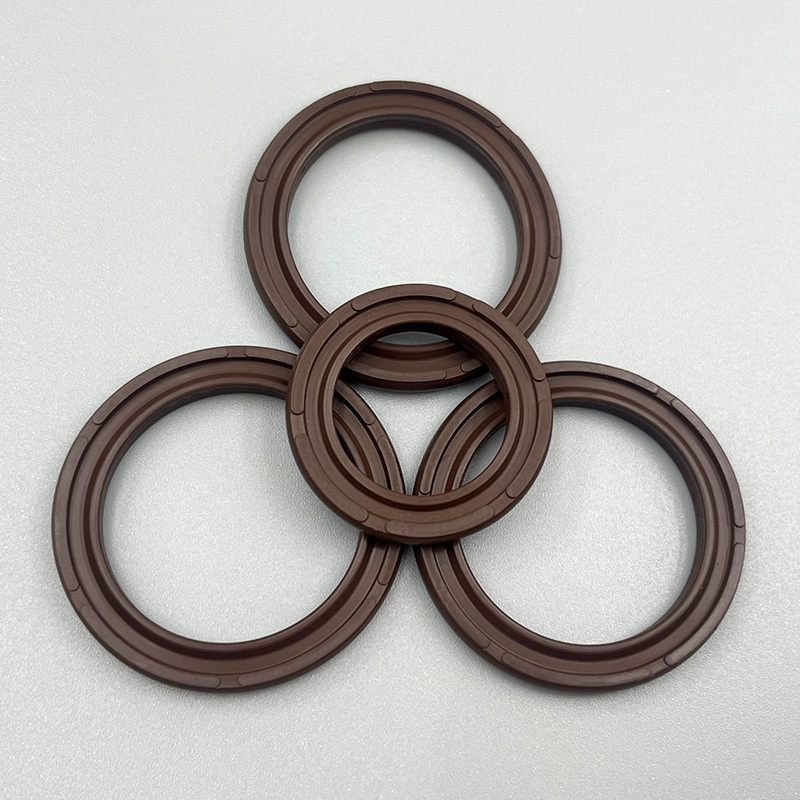

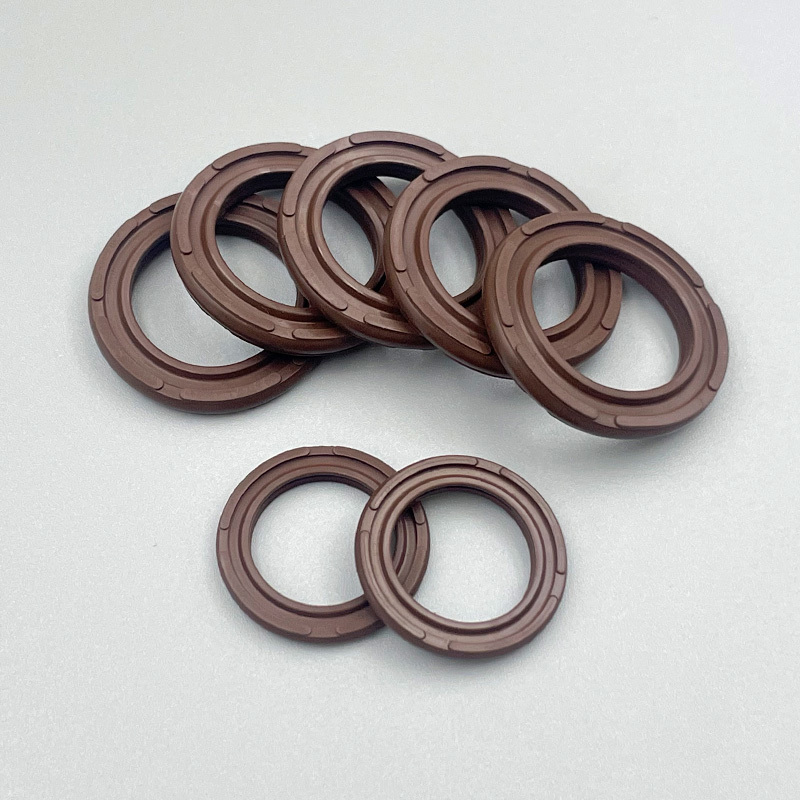

Product real shot
