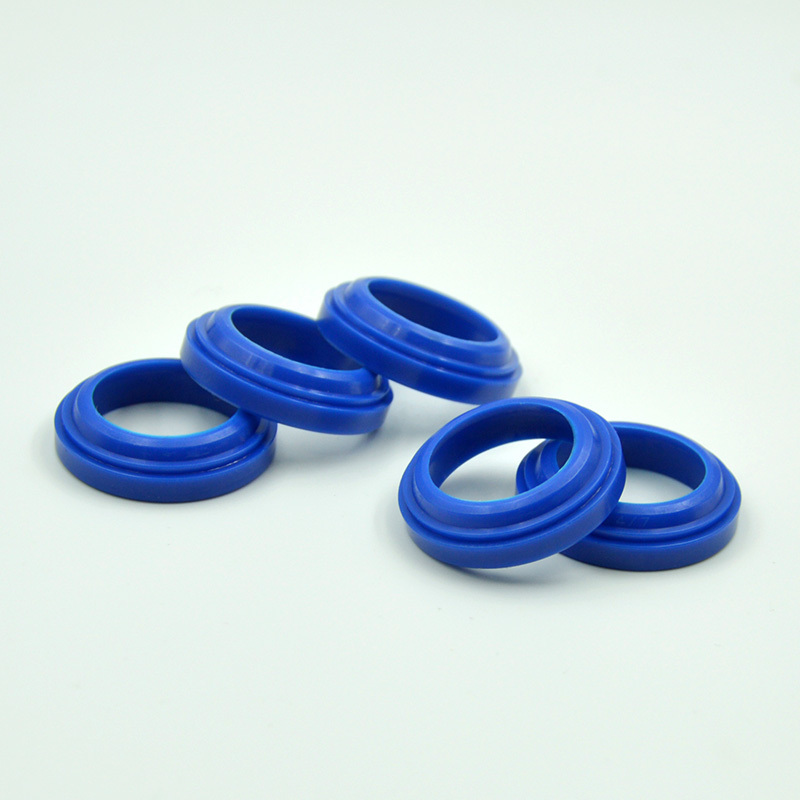

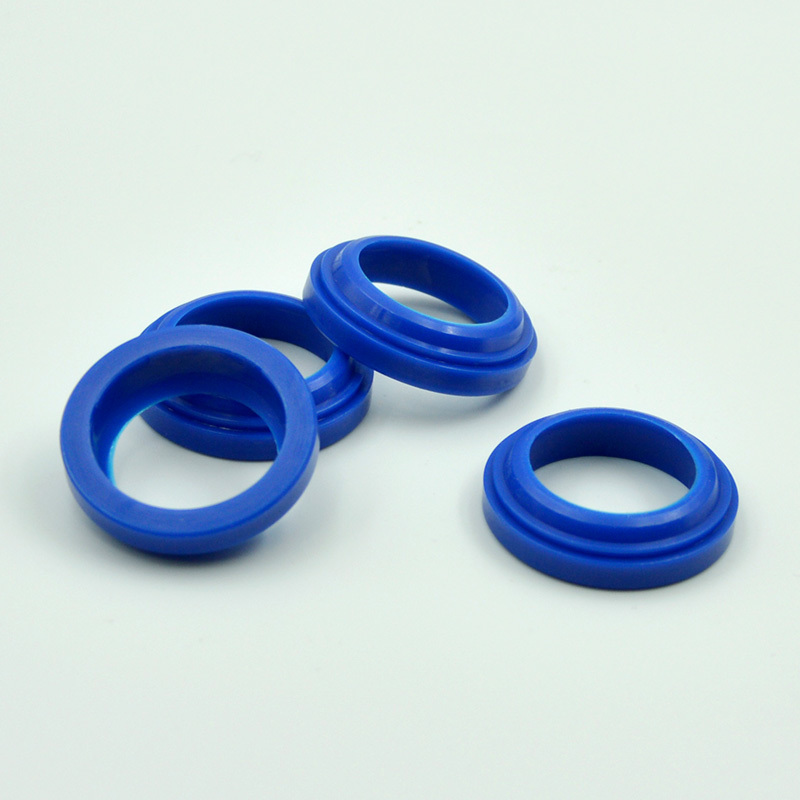

Dustproof Seal A1 GHP Hydraulic Seal Polyurethane Double Step Dustproof Seal Ring
| 원래 장소 | 중국 |
|---|---|
| 브랜드 이름 | DZK |
| 인증 | ROHS |
| 모델 번호 | GHP |
| 최소 주문 수량 | 100pcs |
| 가격 | Negotiations |
| 포장 세부 사항 | 100대 pc /는 불룩해집니다 |
| 배달 시간 | 7-10 일 |
| 지불 조건 | 신용장, 티/티 |
| 공급 능력 | 10000PCS/월 |
무료 샘플과 쿠폰을 받으려면 연락하세요.
왓츠앱:0086 18588475571
웨이 채팅: 0086 18588475571
스카이프: sales10@aixton.com
걱정이 있으시면 24시간 온라인 서비스를 제공합니다.
x제품 상세 정보
| 씰 유형 | 더블 스텝 더스트 씰 | 왕복 속도 | ≤2m/s |
|---|---|---|---|
| 제품명 | A1 더스트 씰 | 온도 범위 | -35°C ~ +110°C |
| 재료 | PU(폴리우레탄) | 중간 | 유압유, 유제, 물, 공기 |
| 특징 | 먼지, 오물, 자갈, 금속조각 등의 유입을 방지합니다. | 색상 | 파란색 |
| 강조하다 | Polyurethane Double Step Seal Ring |
||
필요한 제품을 선택하고 게시판에서 당사와 소통 할 수 있습니다.
제품 설명
GHP Hydraulic Seals | Polyurethane Dual-Step Dust Seal - Professional Engineering Machinery Protection Solutions
Dual-Step Protection Technology Provides Excellent Dust Protection for Heavy Engineering Machinery
GHP hydraulic seals are made of high-grade polyurethane material and feature an innovative dual-stage dust-proof design, specifically designed to provide reliable dust-proofing, chip-removal, and sealing protection for engineering machinery, mining equipment, and industrial hydraulic systems. Its unique dual-lip chip-removal structure effectively prevents contaminants from entering the hydraulic system, significantly extending the service life of the equipment.
Product Core Advantages
Dual-Level Dust-Proofing Technology
- Main Scraping Lip - Effectively removes large particle contaminants from the rod surface
- Auxiliary Sealing Lip - Provides secondary protection to block fine dust from entering
- Optimized Geometric Structure - Ensures optimal scraping performance while reducing friction
- Quick Debris-Discharge Design - Special grooves promote the discharge of contaminants
Excellent Performance
✅ Exceptional Wear Resistance - Polyurethane material offers over 3 times the service life compared to ordinary rubber
✅ Wide Temperature Adaptability - Maintains excellent performance within the range of -35°C to +110°C
✅ Anti-Extrusion Design - Reinforced root structure prevents deformation under high pressure
✅ Easy Installation - Precise dimensions ensure convenient and reliable installation
Technical Specification Parameters
| Parameter | Standard Specification |
| Seal Type | Double Step Dust Seal |
| Material | PU (Polyurethane) |
| Temperature Range | -35°C to +110°C |
| Reciprocating speed | ≤2m/s≤2m/s |
| Medium | Hydraulic oil, emulsion, water, air |
| Features | Prevent dust, dirt, gravel, and metal chips from entering |
Detailed Application Fields
Construction Machinery Equipment
- Excavators - Dust protection for shovel cylinder and boom cylinder
- Loaders - Scraper seals for lifting cylinder and steering cylinder
- Bulldozers - Dust prevention for track tensioning device
- Rollers - Protection for vibration wheel cylinder
Industrial Hydraulic Systems
- Injection Molding Machines - Dust protection for nozzle cylinder and clamping cylinder
- Hydraulic Presses - Sealing protection for main cylinder and ejection cylinder
- Machine Tool Equipment - Guide rail protection and hydraulic cylinder dust prevention
- Metallurgical Equipment - Protection for continuous casting machine and rolling mill hydraulic cylinders
Design Innovation Features
Structural Optimization Design
- Synergistic Action of Double Lips - Clear division of labor between main and auxiliary lips for comprehensive protection
- Precise Pre-tension Control - Optimized contact pressure distribution
- Innovative Chip Removal Channel - Annular drainage groove for rapid flow guidance
- Anti-Overturning Structure - Special geometric shape to prevent installation overturning
Performance Enhancement Characteristics
- Low Friction Design - Special lip shape to reduce operating resistance
- Elastic Memory - Excellent structural recovery capability
- Installation Friendly - Chamfered design to avoid installation damage
- System Compatibility - Suitable for various hydraulic oils and operating conditions
Installation and Maintenance Guide
Professional Installation Recommendations
Preparation
- Clean the installation area and remove burrs and sharp edges
- Check the groove dimensions to ensure they meet requirements
- Prepare dedicated installation tools
Installation Process
- Apply lubricant evenly
- Use an installation sleeve for assistance
- Ensure the dust seal is correctly oriented
- Check the post-installation condition
Maintenance and Care Guidelines
Regular Inspection Intervals
- Normal operating conditions: Every 500 working hours
- Heavy-load operating conditions: Every 250 working hours
- Extreme operating conditions: Every 100 working hours
Replacement Criteria
- Lip wear exceeds 1mm
- Cracking or hardening occurs
- Elasticity is significantly reduced
- Scraping effect deteriorates
